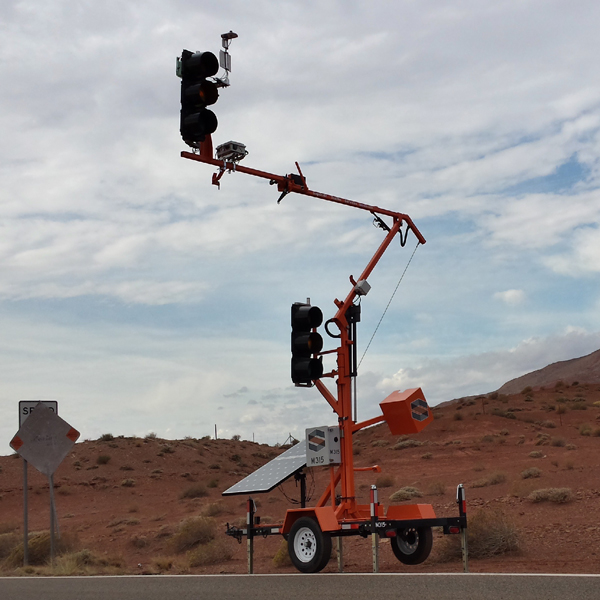

The PTS-1000A
The PTS-1000A is the smart choice for safe and efficient temporary traffic control in a wide variety of short and long-term applications. From complex intersections to simple lane closures, the PTS-1000A gets the job done.
Each PTS-1000A comes standard with dual-traffic and work-zone-facing web cameras, redundant video and radar vehicle detection, and the STS TESS Controller. These standard features make real-time video, programming, monitoring, and control of the signal system easy.
SPECS:
- 180◦ Adjustable ITE Polycarbonate Signal Heads
- 12” Diameter LED’s with Work Zone Safety Lights
- 17’ 6” – 19’ 0” Top Signal Clearance, 8’ Bottom Signal Clearance
- Extendable Mast Arm
- 300 W Adjustable Solar Array
- 4 – 4D 12V with 700 amp/hr Battery System
- 21-day Autonomy Depending on Configuration
- Electric Deployment Actuator with Limit Switch
- 4 Leveling and Stabilizing Outriggers
- 2,500 lb. +/- Trailer Weight, 84” W x 96” L Footprint
- 2” Ball and Tandem Tow-able, 18’-2” Tandem Length

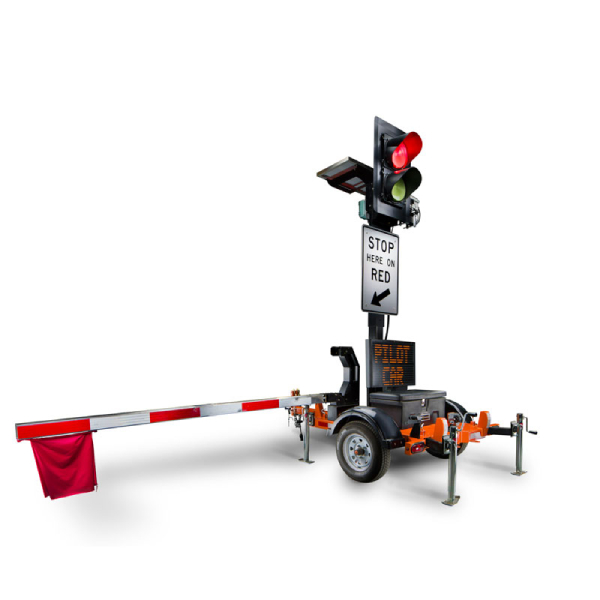

Automated Flagger Assistance Device
Easy to tow, easy to set up, and as durable and hard-working as you are, the STS AFAD manages traffic in all kinds of environments while keeping flaggers off the roadway and out of harm’s way.
Use the TESS app to use AFADs in pilot-car mode, or manually control traffic from a safe vantage point.
The STS AFAD uses the same triple-redundant communications found on all our devices; not only is the wireless communication between STS AFADs and other traffic control devices incredibly reliable, it also means STS AFADs can be set up on long work zones – more than a mile from end-to-end.
Mini message boards inform motorists of wait times and other pertinent job information, and the breakaway gate arms add extra stopping power to 12-inch LED lights, which sit nearly 10 feet off the ground when the AFAD is deployed.
SPECS:
- 12” Diameter LEDs w/ Work Zone Safety Light
- Adjustable 105” to 147” Operating Height
- Adjustable 66” to 107” Retroreflective Gate Arm
- 18”x28” Full Matrix Real-Time Message Sign
- 24”x36” R10-6 Regulatory Sign
- 12v w/ 400 Ahr AGM Battery System + 115 VAC Charger
- 14 Day Solar Autonomy based on Configuration
- 100W Photovoltaic Solar Array + Onboard Charge Controller
- Zero-Gravity Signal Head & Sign Lift Mechanism
- One Person, Simple Deployment & Moves
- 4 Leveling and Stabilizing Outriggers
- 800 lb. +/- Weight, Narrow 54”W x 98”L x 105” H
- 2” Ball + 3-point Connection for Safe Tandem Towing
- 24/7 Live Remote Monitoring via RTTMS or TessMobile App
- Redundant Communication, Cameras, & Detection Systems
- Optional 125 dB Intrusion/Warning Horn Alarm

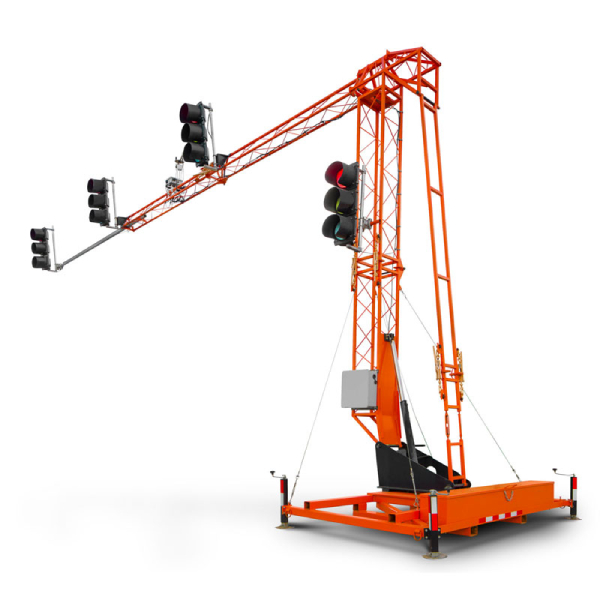

Truss Signal
The STS Truss Signal is the only choice for safe and efficient temporary traffic control where you’ve got a complex intersection or need to control several lanes and phases of traffic simultaneously.
Traditionally, span-wire setups have been the go to, but offer their own set of challenges. The STS Truss Signal can be set up and deployed in a matter of minutes without impacting traffic. The STS Truss Signal is versatile and portable, making it the only choice for short or long project duration’s.
SPECS:
- Up to 5 ITE Polycarbonate Signal Heads
- 12” Diameter LED’s with Work Zone Safety Lights
- Easy Deployment without Impacting Traffic
- 300 W Adjustable Solar Array
- 12v w/1000 amp/hr Battery System
- 21-day Autonomy Depending on Configuration
- Skid Mount with 8’ x 10’ Footprint
- 17’ – 24’ Height Clearance
- 24′ to 32’ Horizontal Extension
- 90 MPH wind-load rating
Pedestal With Attachments
When you’re in a tight spot the PTS – Pedestal is the smart choice for safe and efficient temporary traffic / pedestrian control. Whether it’s a stand-alone application, or an integral part of a complex intersection, the PTS – Pedestal makes short work of it.
The PTS Pedestal Signal is a fully integratable small-footprint platform for ancillary accessories like driveway management signal, pedestrian signal & push button, stop bar illuminator, advanced cameras, and work zone flashers.
SPECS:
- ITE Polycarbonate Signal Heads with 12” Diameter LED’s.
- Adjustable 5’ to 8’ Minimum Clearance
- 4 – 6V Deep Cell Battery System
- 21-day Autonomy Depending on Configuration
- 100 W Adjustable Solar Array
- Optional Pedestal Cart for Easy Moving
- Integrates with all STS Devices and Solutions
- Optional Accessories
- Driveway Management Signal
- Pedestrian Signal & Button
- Advanced Flasher
- Bicycle Clearance Time Extender
- Stop Bar Illuminator
TESS Controller
For the first time, multiple competing brands of signals can communicate and be utilized as a functional system by making use of our LTC Retrofit option.
We can retrofit our technology to any temporary/portable signal, to give you the same features and services that are standard with STS brand signals. We’ll work with you to find the best fit possible for your needs.
Does your job need multiple phase and cycle intersections, but your current equipment is limited? The STS TESS Controllers extend your current capabilities to overcome those limitations.
We make it easy to use your equipment and supplement with our rental equipment. It’s no longer necessary to remain brand-specific.
The STS TESS Controller makes every signal a more reliable, intelligent, and versatile signal.
SPECS:
- Redundant Video and Radar Vehicle Detection
- 3 Onboard Wireless Communication Systems: 900 MHz radio, 2.4 GHz WiFi, and 4G LTE Cellular
- Dual Traffic and Work Zone Facing Web Cams
- Interchangeable Master/Slave Designations
- User-Friendly Programming Interface
- Operation and System Status Display
- Unlimited Phase/Cycle Control
- STS Network Watcher and Conflict Monitoring
- Pager Alerts to Designated Stakeholders
- Unlimited System Fault and Status Log Storage
- Remote Control Device with 1/2 mile Minimum Range
- NEMA 4, 4X, and 6 Rated Enclosure
- Self-Contained with -30◦ to 135◦ Operation

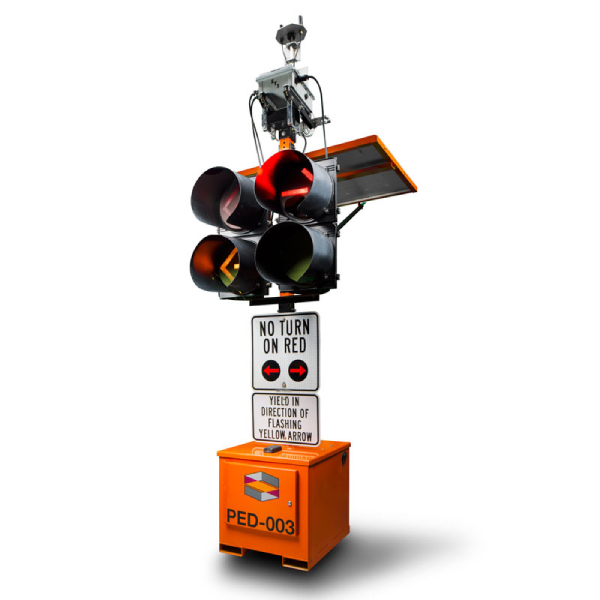

Driveway Assistance Device
Control as many driveways and low-traffic side roads as you need with the STS DAD. Keep residents within the work zone from driving the wrong way as they enter the work zone. Now you can in-crease efficiency to the traveling public while saving precious real-estate over placing a full-size Portable Traffic Signal. And STS’s “tumble timing” ensures motorists entering from driveways and side roads wait the absolute minimum amount of time.
DADs are easily moved in place with the specialized towing trailer and the bottom-heavy design keeps the STS DAD upright in high winds. The extremely small footprint means the DAD can be placed almost anywhere.
With the solar panel the on-board batteries can run the STS DAD for weeks without charging – typically it runs for months! Like all STS traffic-control devices, the STS DAD is part of the triple-redundant communication network: cellular, Wi-Fi, and 900 MHz radio keeps communication open between all on-site devices 24/7.
SPECS:
- Adjustable 5’ to 8’ Minimum Clearance
- 4, Six-Volt Deep Cell Battery System
- 21-Day Autonomy Based on Configuration
- 100-Watt Adjustable Solar Array
- 110 volt On-Board Charging System for Re-Charging
- Optional Pedestal Cart for Easy Moving
- Integrates with all STS Products
- Pedestrian Crossing Signal and Push Button Option
- Driveway Assistance Device Option
